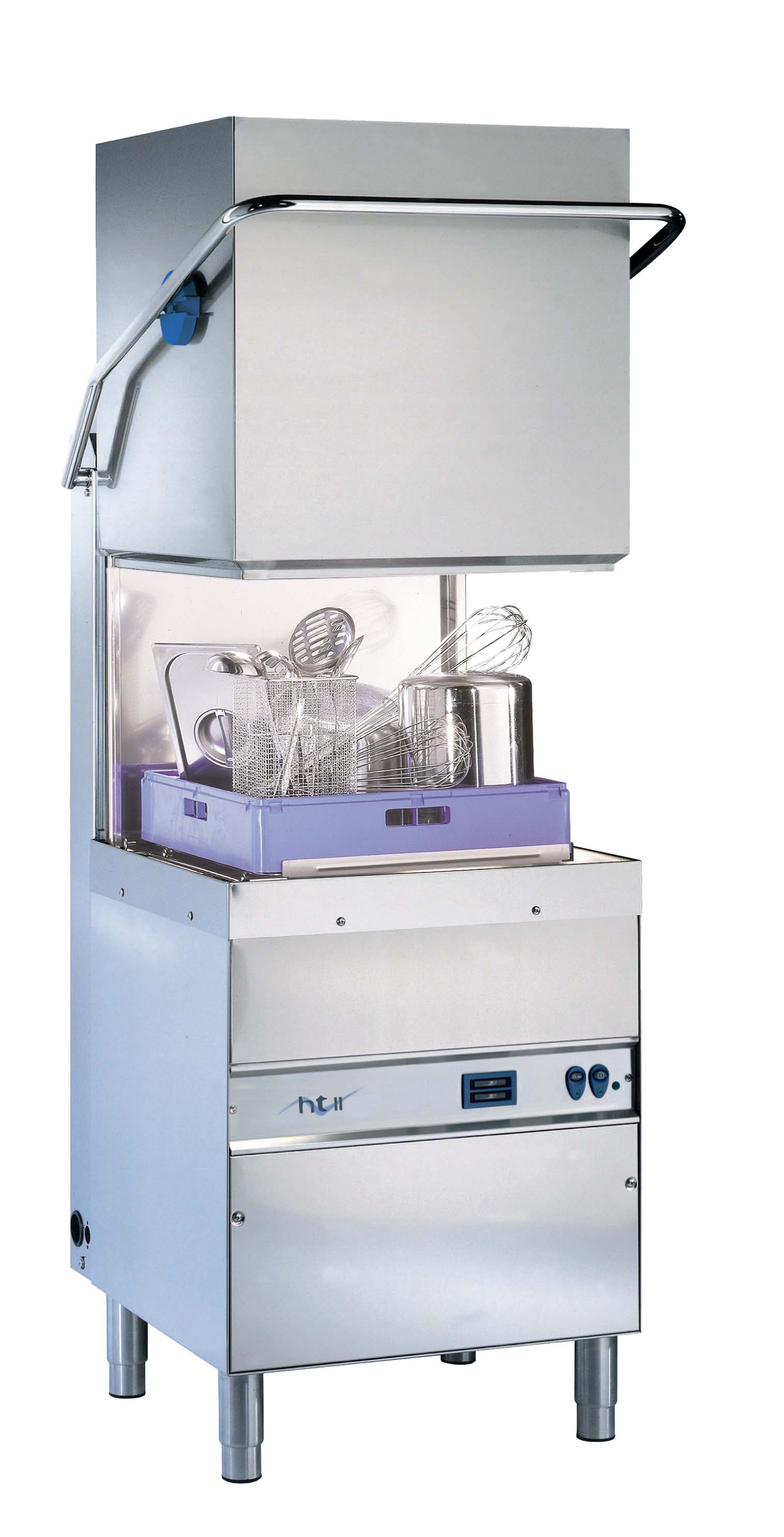

HOOD TYPE DISH WASHER (HT11)

FEATURES

• Extra large washtank reduces detergent cost • Gravity drain – Recommended drain height – 150mm from the ground • Drain pump kit optional on all dishwashers – suitable for existing installations • To eliminate breakages, use racks as storage racks to save time, money and handling • Minumum water pressure required – 2 bar • Max plate height: 410mm • Max tray height: Gastronorm 1/1 (530 x 325)

SPECIFICATIONS – DWD0011

DIMENSIONS: 720 x 735 x 1400/1890mm WEIGHT: 116kg (gross weight) OUTPUT: Approx 60 racks per hour TOTAL POWER: 13.12kW VOLTAGE: 400V – 3 phase + Neutral WASH PUMP: 1.1kW WASH TANK: 35Lt BASKET SIZE: 500 x 500mm

INCLUDES:

– 2 X Plate Racks, 1 X Glass Rack, – 1 X Cutlery Holder, Deep-Formed Tank, – Independent Wash/Rinse Arms, – Built-In Rinse-Aid Pumps, – Double Tank Filters & Pump Filter, – Electronic Timer & Thermostat – Hood Operated Start/Stop Function

ORDER CODE:

  • DWD0011 • DISH WASHER DIHR – HT11 HOOD-TYPE
    ACCESSORIES:
  • DWD0002 • DISH WASHER DIHR – WATER SOFTENER [HT11] DWD0003 • DISH WASHER DIHR – DRAIN PUMP KIT [HT11]
  • DWD0004 • DISH WASHER DIHR – SOAP DISPENSER [HT11]



All DIHR machines are gravity drain systems and require fitted chemical dispensers
