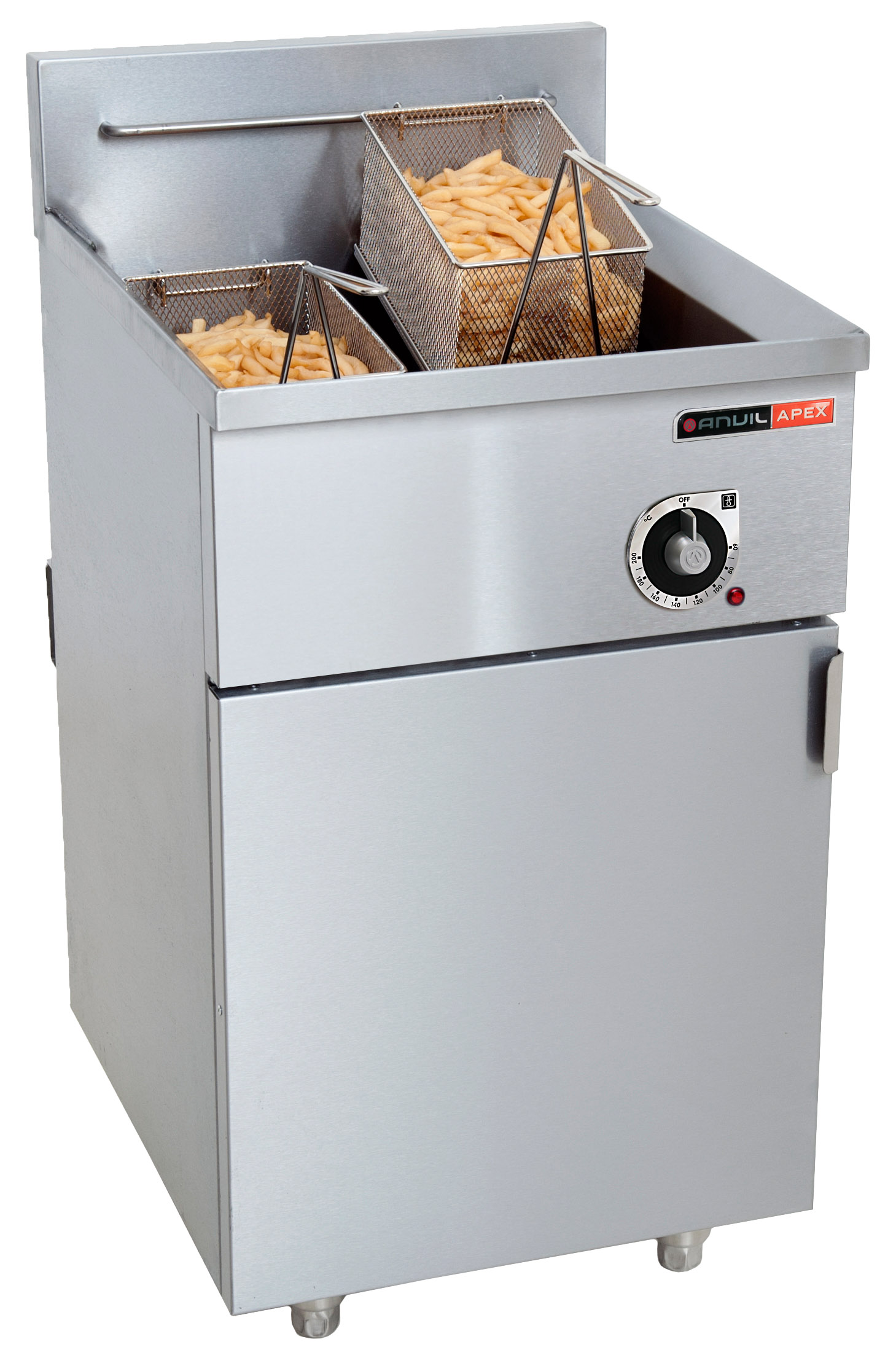

20LT FLOOR STANDING FRYER – ELECTRIC

FEATURES

• Controls are located above the front door and the main terminals are behind the front access panel • These units are powered by incoloy tubular sheathed elements which ensure consistent peak performance • Fitted with a 40mm diameter, full bore spherical valve to drain used oil • Manual resetable safety thermostat to protect against oil overheating • Supplied with one drain tank • Operating temperature: 50°C -190°C

SPECIFICATIONS – FFA1020

• OUTPUT: APPROX 40kg FRENCH FRIES PER HOUR
• POWER: 16.5kW
• VOLTAGE: 380V – 3 PHASE (Neutral and Earth)
• VOLUME OF OIL: 20Lt
• DIMENSIONS: 510 x 660 x 1000mm
• WEIGHT: 45kg

SPECIFICATIONS – FFA6120

• OUTPUT: APPROX 35kg FRENCH FRIES PER HOUR
• POWER: 12kW
• VOLTAGE: 380V – 3 PHASE (Neutral and Earth)
• VOLUME OF OIL: 20Lt
• DIMENSIONS: 510 x 660 x 1000mm
• WEIGHT: 45kg

ORDER CODES:

• FFA1020 • FISH FRYER ANVIL – 1 x 20Lt – 16.5kW (ELEC)
• FFA6120 • FISH FRYER ANVIL – 1 x 20Lt – 12kW (ELEC)
• CBS2280 • CHIP BASKET- 280 x 179 x 130mm (NO SIDE HOOKS) ORA0001 • OIL RECEIVER -APEX

(BASKETS SOLD SEPARATELY)
