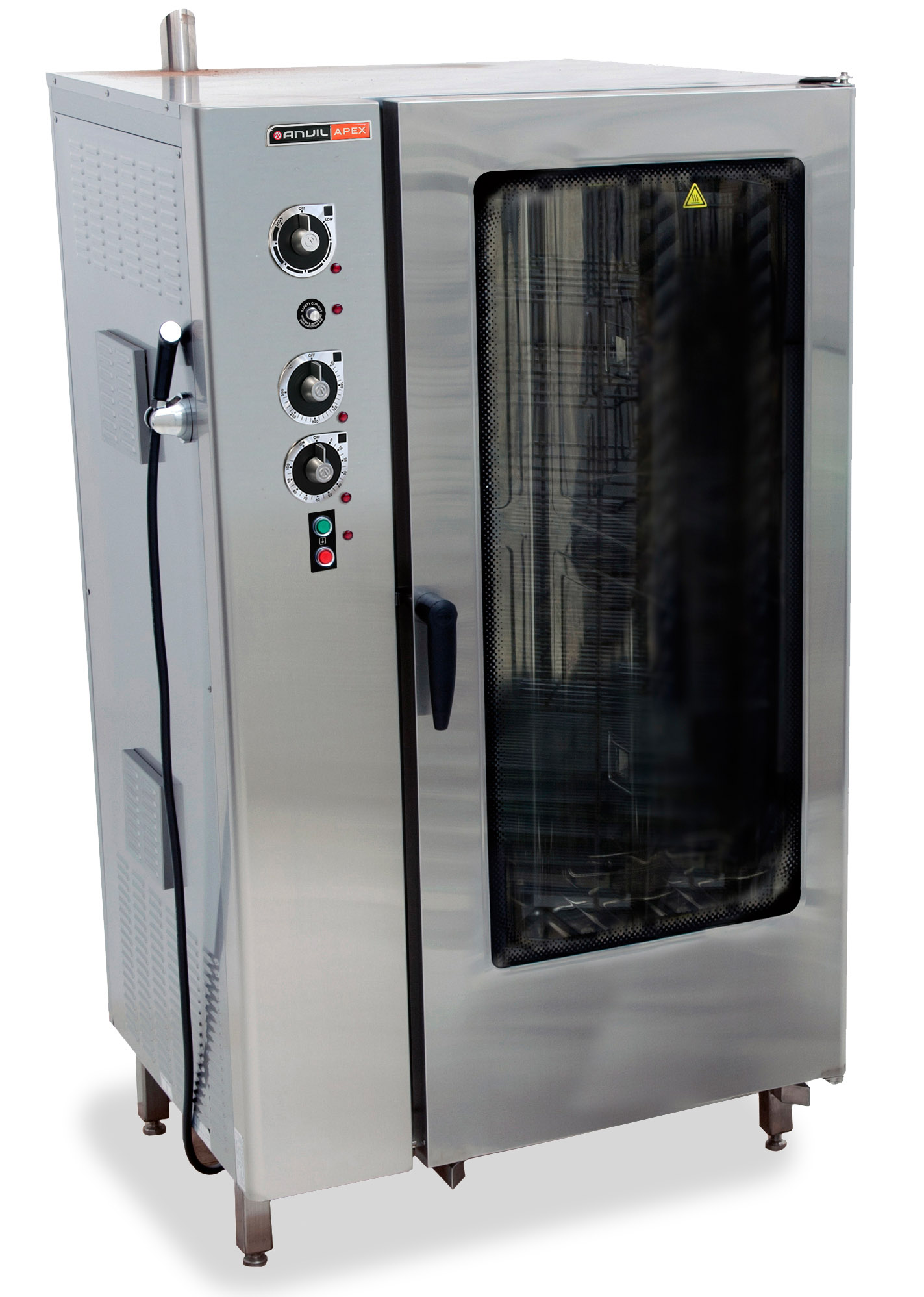

COMBI STEAM OVEN (20 & 40 PAN)- MECHANICAL

FEATURES

• Heavy duty full Stainless Steel construction • Powerful circulating fans • Removable interior fan panel for easy cleaning • All interior parts are manufactured from 304 S/Steel • Manual steam injection system with preheated boiler for instant effective steaming • Large full view glass door with cool touch locking handle • Fan will automatically switch off when oven door is opened • Two stage locking handle to safely release heat before fully opening • Roll in trolley included • Convenient trolley system for fast loading and unloading • Rapid heat up time • Steam flow of 30 Litres per hour • Operating temperature: 50°C -300°C

SPECIFICATIONS – COA1040

• POWER RATING: 53kW
• VOLTAGE: 380V – 3 PHASE – 50Hz (Neutral and Earth)
• DIMENSIONS: 1170 x 1000 x 1870mm
• BOX DIMENSIONS: 1270 x 1200 x 1980mm
• CHAMBER DIMENSIONS: 700 x 818 x 1650mm
• CAPACITY: 40
• TRAYS – GN 1/1
• PACKED WEIGHT: 375kg
• WATER INLET (BSP): 3/4”
• WATER OUTLET (BSP): 1 1/4”
• INCLUDES: 5 x ALUMINIUM GRIDS & 2 x CHICKEN RACKS

ORDER CODES:

• COA1040 B CONVECTION OVEN ANVIL (COMBI) – 40 PAN
